How to Make a Tractor Airline Adapter — Use Your Tractor as an Air Compressor
Your tractor already has a built-in air compressor. This guide shows you how to connect standard workshop air tools directly to the rear of your tractor using three inexpensive parts — no workshop compressor needed.
The short version
Fit a Red Line C coupling male plug into the tractor's rear red socket, screw on an M22 × 1.5mm to ⅜″ BSP adapter, then thread on a ¼″ body female carrier coupling. Your standard air tools plug straight in. Parts cost around £25–30 total.
Why your tractor already has an air supply
Every tractor fitted with air brakes has an onboard compressor that keeps the air system charged — typically between 6.5 and 8 bar (94–116 PSI). This is the same system that supplies the trailer air brake circuit through the red C coupling sockets at the rear.
Most air tools, tyre inflators and blow guns run at 6–6.5 bar, so the tractor's supply is well within range. With the engine running, the tractor's compressor continuously tops up the system — meaning you effectively have unlimited air as long as the engine is on.
The adapter described below taps into the red (service line) C coupling socket — the same port you'd connect a trailer's air brake hose to. It's a completely standard connection and costs a fraction of a portable compressor.
What you'll need — 3 parts
HGV C Coupling Male Plug (Red Line)
This is the part that clicks into the tractor's rear C coupling socket — the same port you'd connect a trailer air brake line to. The back of the plug has an M22 × 1.5mm male thread which accepts the next part in the chain. Make sure you buy the Red Line (service line) version, not the Yellow Line (emergency/park brake).
M22 × 1.5mm to ⅜″ BSP Adapter
A short male-to-male adapter that converts the M22 × 1.5mm thread on the back of the C coupling plug to a standard ⅜″ BSP thread. Flowfit make a good stainless version of this. Apply 2–3 wraps of PTFE tape to both threads before assembly.
¼″ Body Female Carrier Coupling (⅜″ BSP thread)
This is the PCL/Euro-style quick-release female socket that your air tools plug into. It has a ⅜″ BSP female thread on the body to screw onto the adapter. Once assembled, any air tool or hose with a standard ¼″ body male probe fitting plugs directly in — the same as using a workshop compressor.
Assembly — 4 steps
Wrap 2–3 turns of PTFE tape around the M22 × 1.5mm thread on the back of the C coupling male plug. Also wrap the ⅜″ BSP male thread on the adapter.
Screw the M22 × 1.5mm to ⅜″ BSP adapter onto the back of the C coupling plug (M22 end). Hand tight, then one full turn with a spanner. Do not overtighten — the PTFE tape does the sealing work.
Screw the ¼″ body female carrier coupling onto the ⅜″ BSP male thread of the adapter. Again, hand tight then one turn with a spanner.
Push the completed adapter into the tractor's rear red C coupling socket until you feel it click and lock. With the engine running, you'll have immediate air supply. Plug your air tool's ¼″ body male probe into the carrier coupling and you're ready to go.

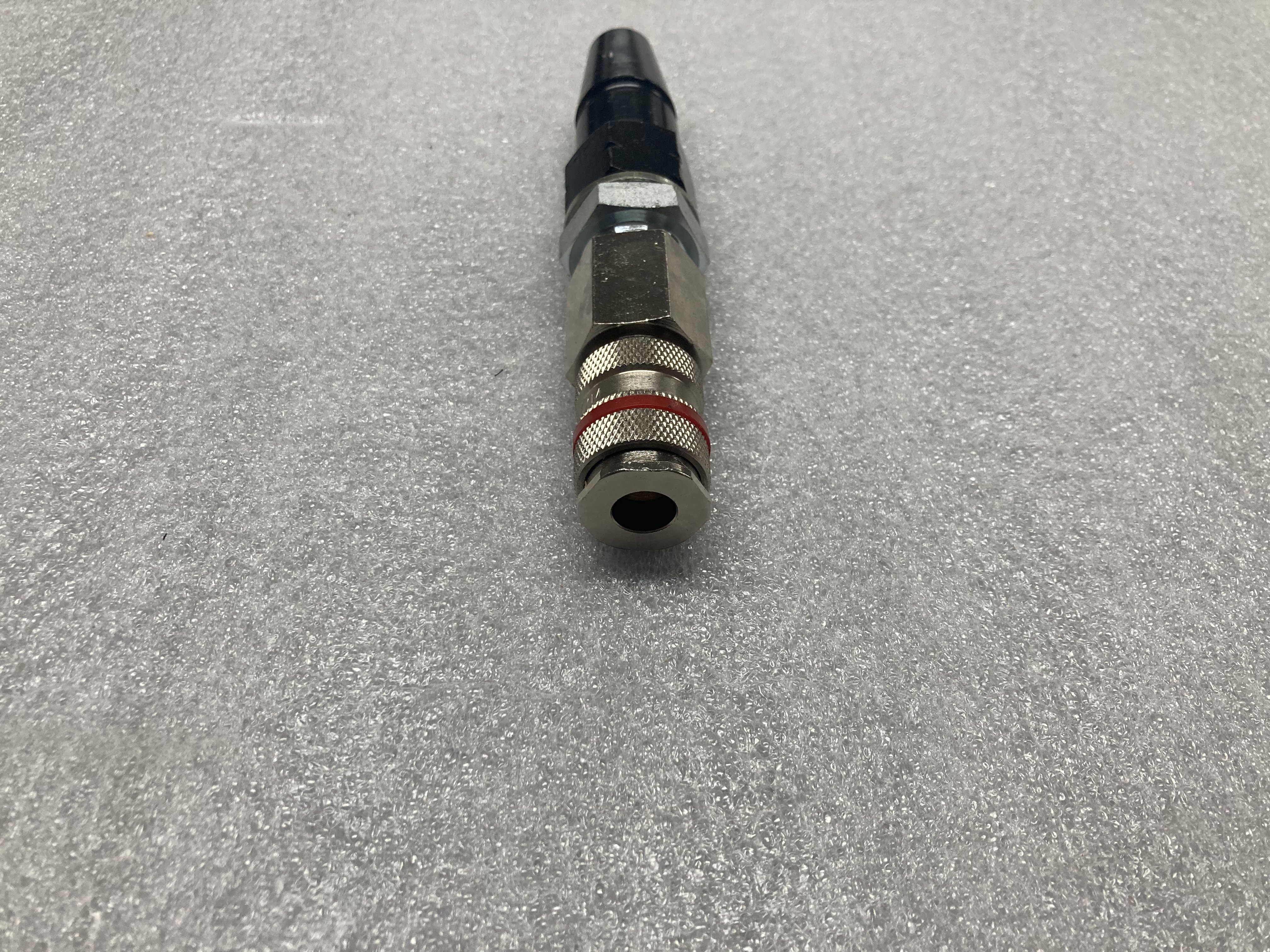

The completed adapter — C coupling, M22 adapter and ¼″ body carrier coupling ready to fit to the tractor
Video walkthrough
Watch the full build on TikTok — showing the parts, assembly and the finished adapter in use on the tractor.
What your tools need at their end
The carrier coupling accepts any standard ¼″ body male probe fitting — the same plug used on workshop compressor hoses and most pneumatic tools sold in the UK. If your tools are already set up for a workshop compressor with PCL/Euro fittings, they'll plug straight in without any changes.
If your tool hoses have bare BSP fittings (no quick-release probe), you need to fit a ¼″ body male probe to each hose. These are inexpensive and available from any hydraulics or pneumatics supplier.
¼″ Body Male Probe Fittings on Amazon →What you can do with the adapter
Tyre inflation in the field
No more driving to the workshop — inflate tractor, implement and trailer tyres on the spot.
Impact wrench on stuck bolts
Fix breakdowns in the field without a portable compressor.
Blow off machinery
Clear chaff, dust and debris from combines, balers and drill units.
Die grinder / air ratchet
Roadside repairs on agricultural machinery, trailers and equipment.
Run a small air chisel
Breaking corroded bolts and pins in the yard or field.
Air up sprayer tyres
Self-propelled or trailed sprayers — no second compressor needed.
Full parts list — total cost ~£25–30
